Understanding ATEM Mini

Learn how to get started with live production today!

With ATEM Mini, it'due south never been easier to get started with live streaming and multi camera video product! This department will show you how to connect and prepare an ATEM Mini switcher so you tin can create your first alive stream! ATEM Mini is a compact broadcast switcher that lets yous switch four or eight HDMI video sources depending on the model, plus 2 dedicated audio sources and the output looks similar a regular USB webcam that you can use with video software. ATEM Mini'southward congenital in command console has all the controls you lot need to make switching programs easy. Then if you want more than power, only run ATEM Software Control to get admission to the full feature fix of ATEM Mini to create incredible furnishings and titles.

Find Reseller

Setting up your ATEM Mini

Step 1

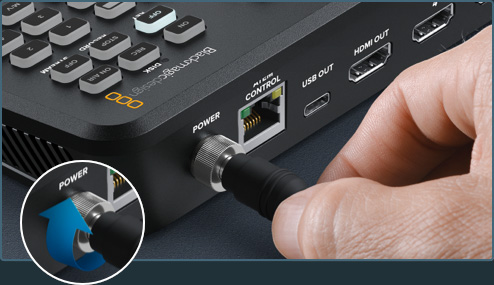

Connect Power

The first pace is to plug in the power supply using the supplied ability adapter. Even so most 12V power supplies will piece of work fine, or even a 12V DC battery source will piece of work fine. If y'all have a locking DC connector, then make certain to tighten it firmly.

Pace 2

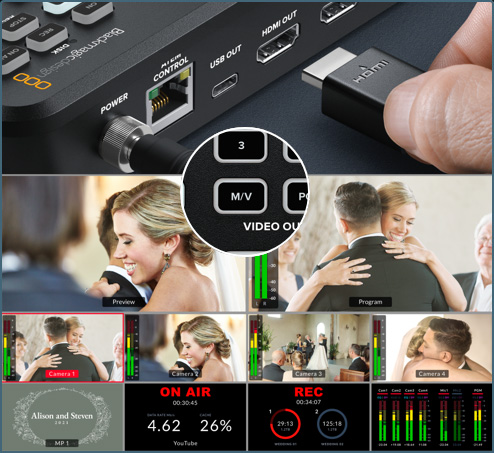

Connect Monitoring

If you accept an ATEM Mini Pro or Extreme, these models have a multiview so you can see it if you connect a monitor to the HDMI out. Make sure yous press the M/5 button on the video output selection. Now you lot can come across all your sources as you plug in cameras!

ATEM Mini Pro and Farthermost models include Multiview

Step 3

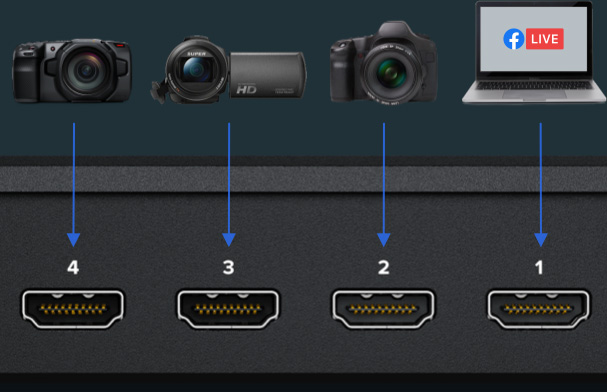

Plug in Video Sources

Next, plug your HDMI cameras and computers into ATEM Mini'south HDMI inputs. This gives y'all 4 or 8 different video sources depending on your model, to switch between when creating your plan. All the HDMI inputs are standards converted then don't worry about video settings!

Step 4

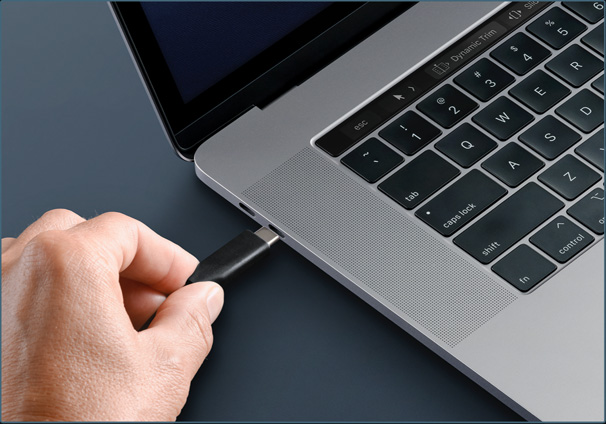

Connect a Computer

If you're streaming, then all models utilise USB equally a webcam. Kickoff connect the USB to a reckoner. Your calculator will recognize ATEM Mini as a webcam and you can and so select information technology as the webcam source in your streaming software, such as Skype.

Stride 5

Stream Video

Skype is a adept app for testing, and then allow's configure it for ATEM Mini. In Skype audio and video settings select Blackmagic Design equally the video and audio sources. You will see the ATEM Mini video in the preview window and you can brand calls!

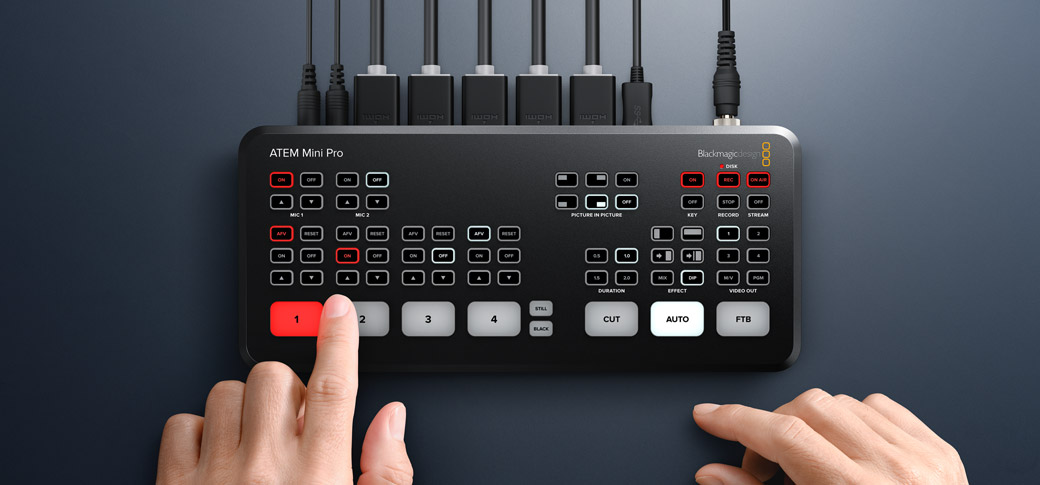

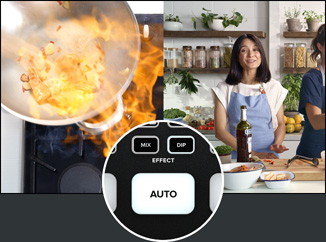

Switching Between Cuts and Effects Transitions

1. Press a transition button to select the transition you want to use.

two. Press the 'auto' button to perform the transition.

3. The input buttons evidence the new input on air.

At present that yous have your cameras connected, you can offset switching your program! It'due south every bit piece of cake as just pressing the input buttons to switch between sources. You'll see the cuts are smooth and professional looking. To transition with a video effect, simply press auto then selecting input buttons will employ a nice transition. Considering cut is the most popular transition, there are dedicated buttons for cut and auto transitions. You can alter the type of auto transition that's used by pressing the buttons in a higher place the AUTO push. You tin choose between mix, dip, DVE push button, DVE squeeze, and vertical and horizontal wipes. Of course there are a lot more transitions available when using ATEM Software Control!

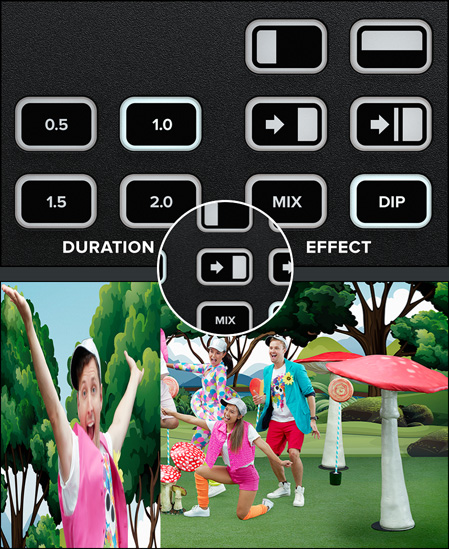

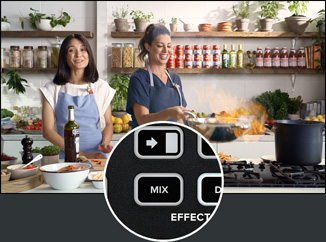

Selecting the All-time Transitions

1. Ready the transition consequence type and elapsing.

2. Squeeze DVE transitions add excitement to your program.

three. Use a DVE squeeze tosqueeze one source over another.

Earlier creating your get-go program, it's worth thinking nearly the type of transitions bachelor. From a artistic point of view, a mix transition can experience very elegant as information technology gradually fades from one source into the side by side, while slower mix transitions tin can feel dreamy and gentle. A wipe transition will move a line beyond the original source revealing the next source and it has a different feel depending on the amount of soft border you set in the wipe parameters. You lot can even set a wipe with a border that uses a colour or fifty-fifty live video! DVE transitions are a lot of fun and they move the whole image during the transition, so they tin feel crazy and exciting, making them perfect for kids shows!

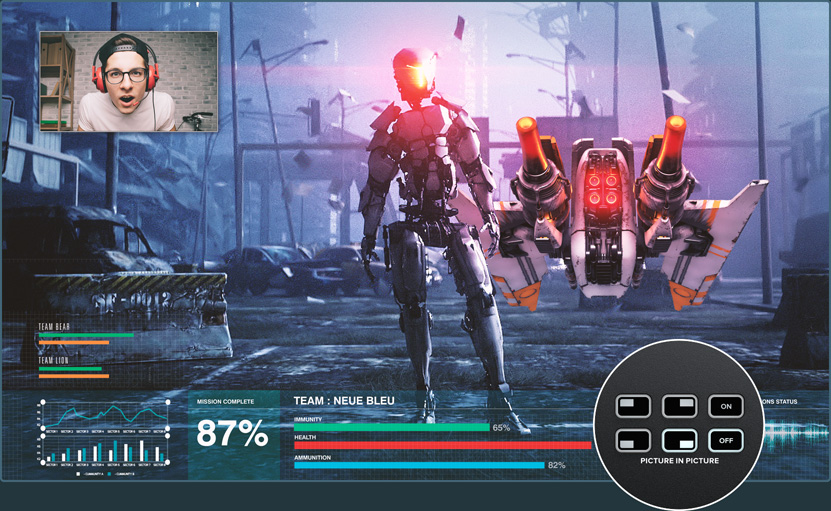

Superimpose a Picture in Movie Overlay

Picture in motion picture superimposes a video in a small box that you can position and customize over your chief source. To do this you lot use the digital video effects processor, or DVE. The DVE uses input 1 for its default source, and so if you lot're broadcasting gameplay and want to superimpose your reactions, plug your camera into input 1. Brand certain your game console uses one of the other inputs. To enable picture in picture but select it on the control panel. Every bit the DVE uses the upstream keyer, yous as well need to plough off the key. There are buttons on the front panel to set the position of the DVE. Yous can also fully customize the position, borders and light source by using ATEM Software Control.

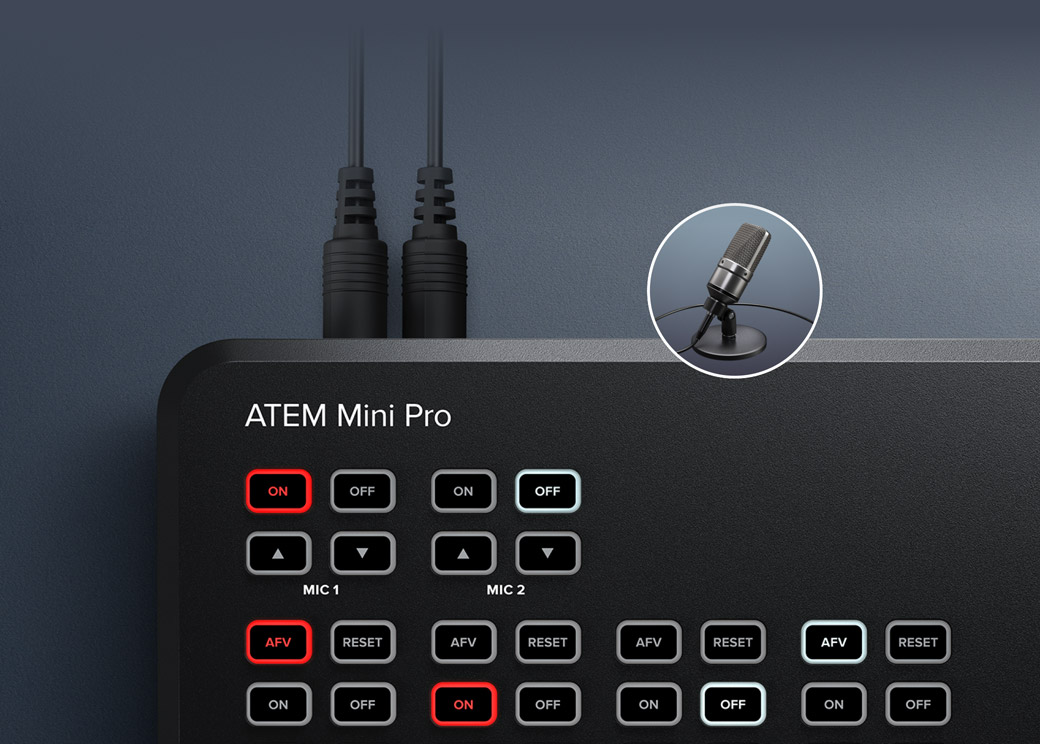

Voiceover or Narrate your Broadcast

If you lot demand to characterize or add commentary to your product, plug a microphone into one of the three.5mm mic inputs. Or use two microphones for broadcasting interviews so you tin individually control how loud or quiet they are. Above each video input button is the smaller sound control buttons where you can plow on and off each audio source. At that place are many types of microphones available, such every bit tiny, wireless neckband microphones and so the presenter can move freely without cables or larger desktop ones for presenters. Using dedicated microphones equally well as using the audio page in the ATEM Software Control to add EQ and some pinch can dramatically improve the clarity of presenters.

Farthermost Ability with ATEM Software Command

If you really desire to access all the power of your ATEM Mini, then you can run ATEM Software Command and get access to many more than features than are available on the front end console. There are pages that let you run the switcher and pallets that have settings for every feature in the switcher. There are besides pages in the software for changing settings, uploading and managing graphics, mixing audio and decision-making cameras. Just connect the USB to a Mac or PC and run the software, as it uses the same USB connection that the ATEM Mini's webcam output uses. You can also utilize ATEM Software Control via ethernet if you lot have more than one operator working on the aforementioned job at the same fourth dimension.

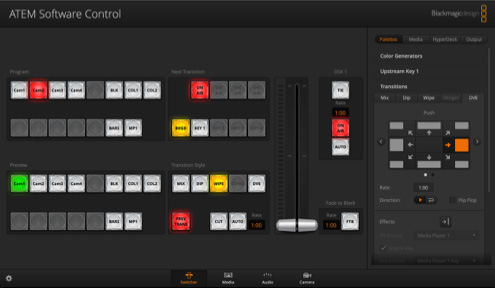

Switcher

Adjust switcher settings, make live cuts, adjust keys, utilize transitions, overlay graphics and more.

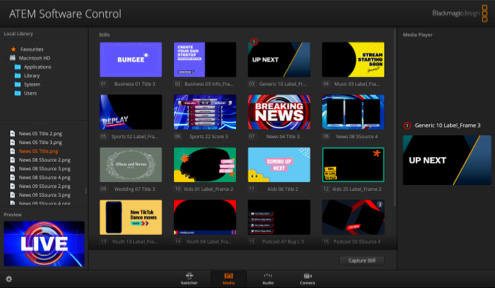

Media

Upload and manage up to xx RGBA graphic files. Graphics tin be used for transitions, as bugs, lower thirds and more than.

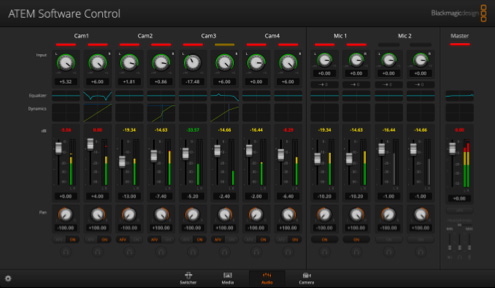

Audio

Professional multi channel Fairlight audio mixer with faders and meters for every input and the master level control.

Photographic camera Control

Control and colour correct cameras via the HDMI connection to Blackmagic Pocket Cinema Camera 4K and 6K.

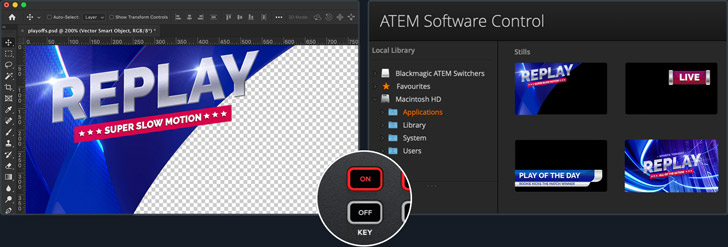

Managing Live to Air Graphics

You tin utilise any graphics software to create titles for ATEM Mini. If the graphic has an alpha channel, ATEM Mini will output the alpha as a key aqueduct to let graphics layering. Graphics with alpha channels can be created in software such every bit Photoshop. To utilise a however graphic, simply drag and driblet information technology into 1 of the positions in the media pool in ATEM Software Command. Now become to the keyer settings in the switcher folio, where you will demand to fix the media role player source to be the still you just loaded. And so in the keyer settings, select the video and cardinal sources to be the media player. At present turn on the keyer and you'll get professional person titles overlaid in real time on your alive video.

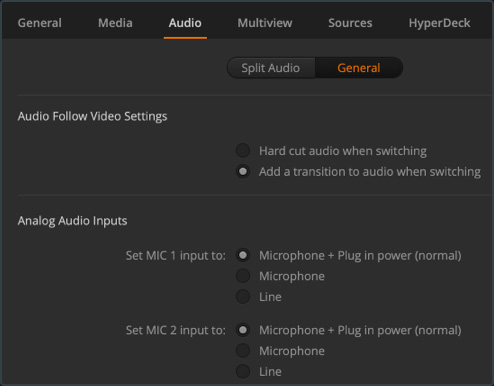

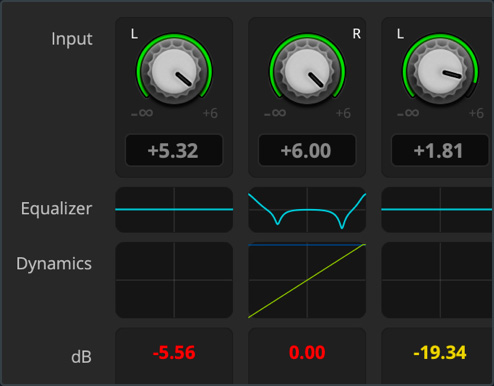

Create Broadcast Quality Mastered Audio

You can create professional mastered audio using the Fairlight audio mixer in ATEM Mini and controlled through ATEM Software Control. Past clicking and dragging the mixer faders you can arrange the sound levels for each camera so they are louder or quieter, or accommodate the microphone levels so voices are clearer and stand out. If a music player is plugged into the second mic input, you lot tin can even fade music in and out of your circulate because each mic input has its own audio mixer inputs and effects! If yous desire to go fifty-fifty further, you tin can add Fairlight EQ, audio compression and limiting to tailor the sound of presenters to get them sounding clear and to go on the audio levels nether control.

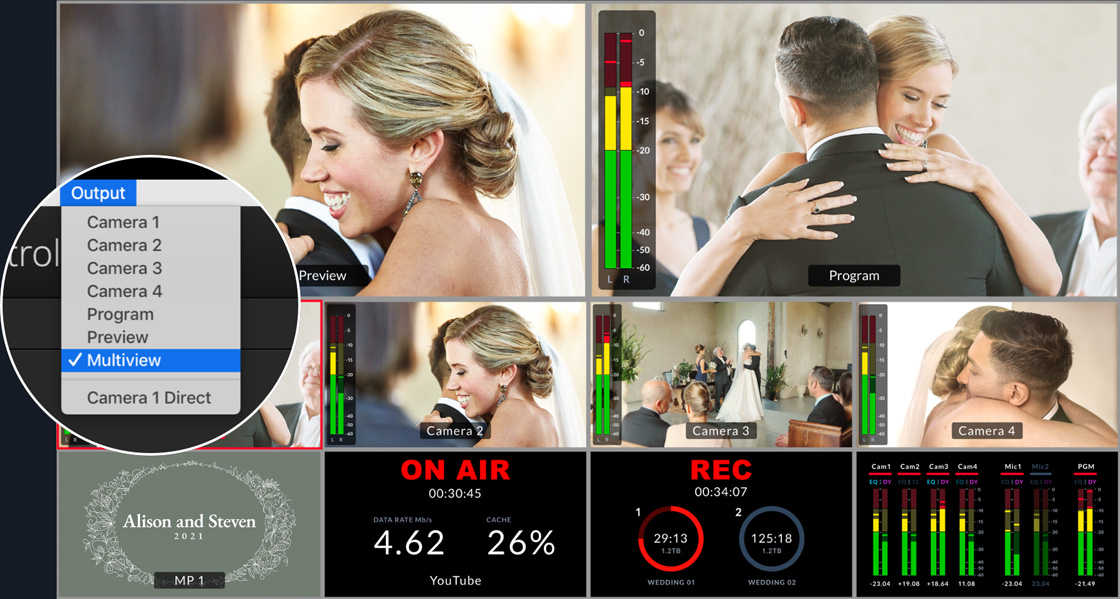

Assign HDMI Out for Monitoring!

ATEM Mini Pro includes Multiview

The HDMI output of ATEM Mini can be changed, on professional person switchers this is called an aux output. You lot can also loop a computer slide show and a projector through ATEM Mini, allowing access to the slide show every bit one of your sources. You can select preview out and set the switcher to program/preview switching to permit you to preview shots earlier going on air. On the ATEM Mini Pro models, you can even select a multiview out for total multi camera monitoring. Being able to meet shots earlier using them on air means you eliminate mistakes. If you lot are broadcasting gameplay, input ane tin exist set to aught latency allowing ATEM Mini to be looped between the console and the gamer's monitor.

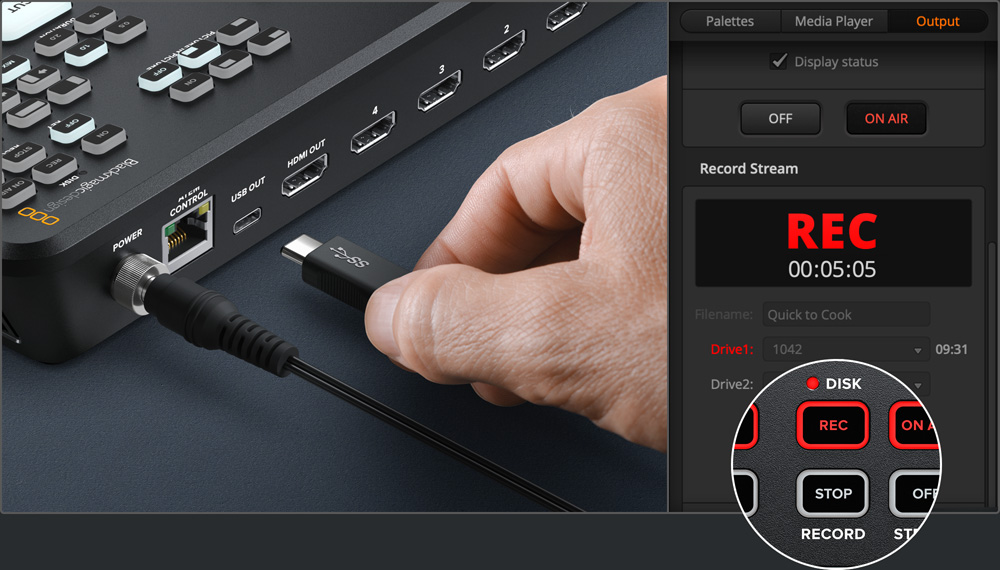

Tape your Live Circulate

You tin record using the HDMI output and recorders such equally the Blackmagic Video Help, allowing you to upload your television shows later on, or to archive your product history. There are too loads of software tools for recording webcam video and so you can apply this software to tape from the USB on a computer. However on ATEM Mini Pro and Farthermost models, you get recording features congenital into the switcher itself! All you need to practice is connect a USB wink disk and and so press record on the front panel! ATEM Mini Pro and Extreme likewise back up recording to more than one USB disk, such equally a Blackmagic MultiDock, so you can continue recording to a second deejay when the first disk becomes total.

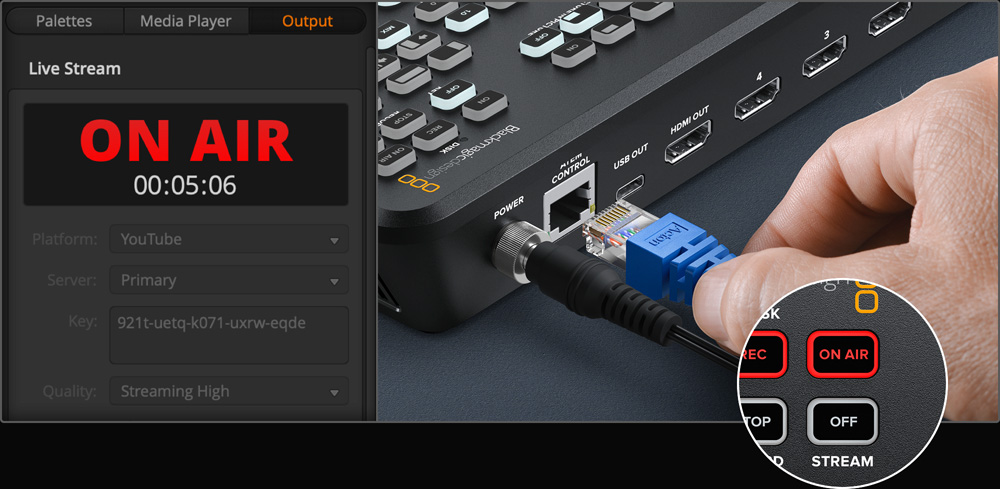

First Streaming Video via Ethernet

If yous want to live stream and you accept the Pro or Farthermost models, yous can stream straight using the ethernet connectedness. One time you lot have connected ethernet to the internet, first request a streaming key from the streaming service. In the ATEM Software Control switcher page output palette select the streaming service you want to use, and the server you want to apply choosing the server closest to your location, and enter the streaming central. More often than not select the highest quality, unless y'all take speed express internet access. Now press the on‑air button on the panel and you lot should see your program video live on your streaming service. On this model you tin see your streaming status in the multiview!

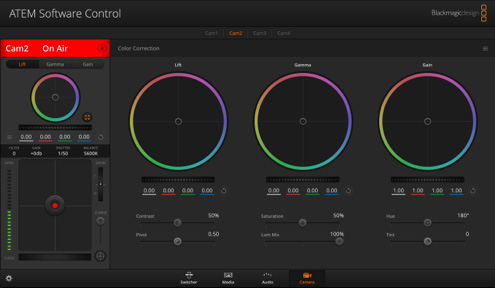

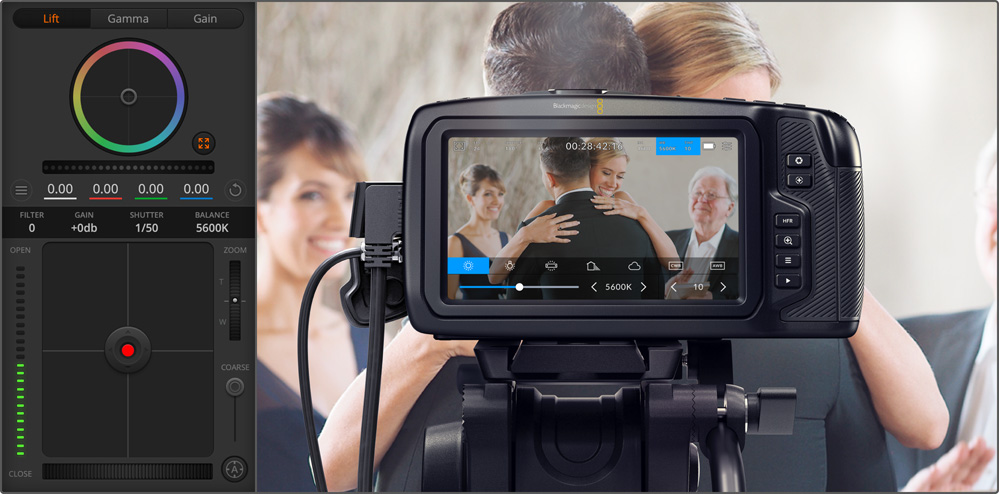

Remote Control Blackmagic Pocket Picture palace Cameras

If you have Blackmagic Pocket Picture palace Cameras then you can control them as studio cameras from ATEM Mini! Video and command is via the HDMI connectedness, so first plug the cameras in. Now y'all can go to the ATEM Software Control Camera folio to get a CCU way interface where yous tin accommodate and match your cameras. Movement the main CCU control up and downwards to control the iris and left to correct adjusts the black level. It's the same equally a broadcast CCU! There are as well controls for colour tint to balance the cameras. Plus y'all can gear up the focus, proceeds and shutter speed of the camera. To access DaVinci colour correction, select the DaVinci icon to open upwards total color bicycle main corrector controls.

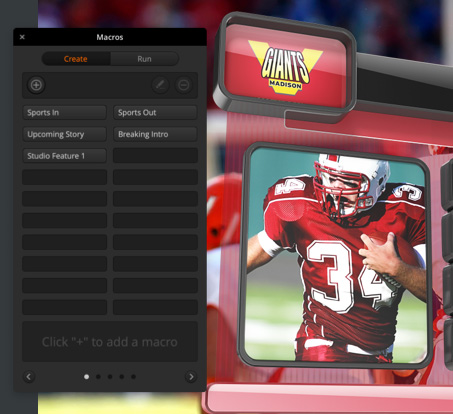

Build Complex Effects with Macros

You can also apply ATEM Software Command to build macros. Macros are useful for recording a sequence of switcher actions so you can repeat them with a single click of a mouse. For example yous could record a combination of switcher actions that transition between several camera sources, switch a graphic to air, and adjust audio levels all in one single macro that can then be played at whatsoever time. Macros tin be as uncomplicated or complex every bit yous desire and are extremely powerful when used in a live product. Your actions are automatically stored every bit an XML file that can be edited and combined together. To use a macro, just click run on the Macro palette in the software switcher settings!

The Side by side Step

Now it'southward time to grow and acquire more!

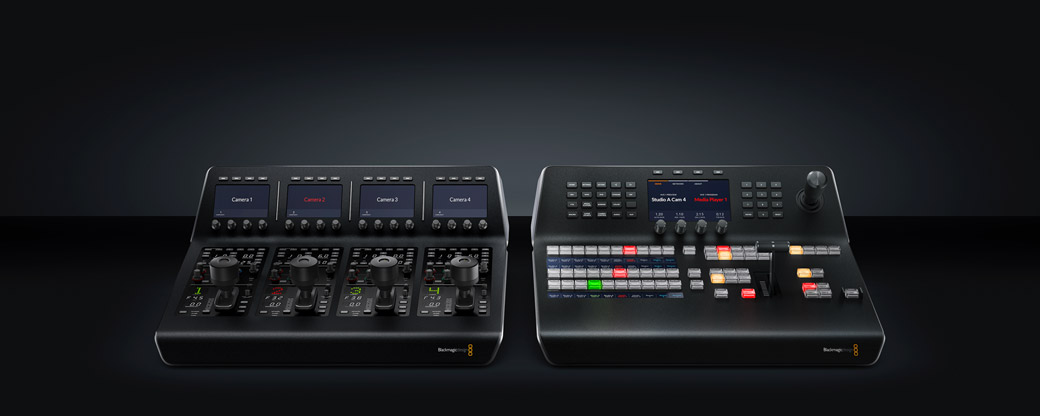

ATEM Camera Command Panel

ATEM 1 M/E Advanced Panel

ATEM hardware panels are external command panels that tin be used for additional command over ATEM Mini. Even though ATEM Mini is an extremely powerful broadcast switcher all by itself, an external ATEM hardware console gives y'all extra ability. Connecting an ATEM hardware panel to ATEM Mini'due south Ethernet port lets you operate the switcher from a different location such as a control room. That keeps ATEM Mini closer to the cameras and the HDMI cables short. Professional control, such as an ATEM ane 1000/Eastward Avant-garde Panel, has physical buttons and controls then it'due south much faster to apply. In that location are so many things ATEM Mini tin can practise! It'southward a bully thought to check the ATEM Mini instruction manual to learn more than!
